48V 32Ah Battery Step-Thru Ebike

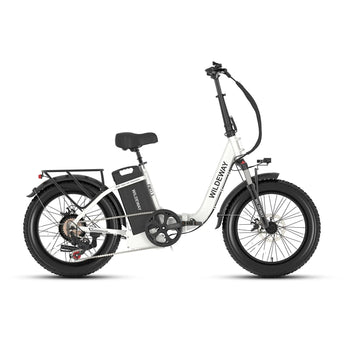

Wildeway FW11S 3.0 Step-Thru Ebike
Pay as low as ... with
Choose your plan
Size: 5'2"-6'4"
📏Size & Fit
Size & Fit
Regular
Select your height.
Large
Select your height.
Pre-Order extra discount of $100: PRE100US.
Max Range100 Miles
Top Speed28 MPH
Battery1536 Wh
Motor1000W Peak Motor
Fat Tires20x3.0"
Payload350LBS
Learn about More Features
| General Info | |
|---|---|
| Model Name | Wildeway FW11S 3.0 |
| Frame | Step-Thru Aluminum Alloy |
| Front Suspension | Spring Fork, 65 mm travel with preload adjustment and lock-out |
| Size Guide | |
|---|---|
| User Height Range | 5'2'' ~ 6'4'' |
| Seat Height Range | 33.4"-37.4" |
| Speed & Range | |
|---|---|
| Max Speed (Default) | 20 MPH |
| Max Speed Adjustable Range | 12~28 MPH |
| Throttle Range | 65 Miles |
| Pedal Assist Range | 100 Miles |
| E-system | |
|---|---|
| Rear Hub | 48V, 750W, 1000W (peak), 68Nm |
| Battery | 48V, 32Ah (1536Wh), IPX6, Certificated by UL 2271 |
| Charger | 48V 3A Fast Charger |
| Display Type | LCD Color Display |
| Sensors | Cadence Sensor |
| USB Port | USB Type-C phone charge |
| Throttle Assist | Half-twist |
| Pedal Assist | 5 PAS Levels |
| Front Light | Adjustable angle |
| Rear Light | Braking Indicator |
| Water Resistant | IPX 65 |
| Wheels | |
|---|---|
| Rims | Step-Thru Aluminum alloy |
| Tire | 20"x3.0" puncture-resistant tires |
| Brake | Mechanical/Hydraulic Disc Brakes |
| Rotors | 160mm front / 160mm rear |
| Brake Levers | Aluminum Alloy, with power cutoff |
| Weight & Dimensions | |
|---|---|
| Bike Weight | 33 kg / 72.8 lbs |
| Max Bike Load | 150 kg / 350 lbs |
| Rear Rack Load | 40 kg / 90 lbs |
| Folded Dimensions | 42.5*18.1*28.3 inch |
| Drivetrain | |
|---|---|
| Chainrings | 52T narrow-wide chainring |
| Crankset | Aluminum Alloy, 160mm |
| Cassette | 7-speed, 14-28T |
| Chain | KMC 7-speed |
| Rear Derailleur | SHIMANO, 7-speed |
| Shift Lever | SHIMANO, 7-speed |
Couldn't load pickup availability
TÜV Safety Certified
Certified in accordance with UL2848 / UL2271.
Features & Details
● 48V 32Ah (1536Wh) Long-Range Battery
● 1000W Peak Motor
● Top speed 28 mph
● 5-level pedal assist, Walk mode, USB charging
● Adjustable Stem
● Front Suspension
● Shimano 7-speed
● Mechanical Disc Brakes / Hydraulic Disc Brakes
Shipping & Warranty
Free Shipping to Canada and US except Alaska, Hawaii, Puerto Rico & other US territories.
15-Day Trial - Return it to us if you’re not 100% satisfied with your purchase. Restocking fee and handle fee applies. See details here.
1-Year Warranty - Wildeway provides 1-year free diagnostic and maintenance services for customers. See details here.
What's in the Box
- E-Bike Body
- User's Manual
- Toolkit to help you assemble the bike
- Battery, Battery Key, Charger, Front Light, Left & Right Pedal, Front wheel quick-install accessories and Bike Saddle.
Ships in 1-2 days.
15-day Trial
2-Year Warranty
Calculate Your Range
See how far you can go based on pedal assist levels.
Estimated Range
100
Miles
Avg. Speed
7.2
MPH
Select Pedal Assist Level (PAS):
*Estimates based on rider weight 80kg, flat road at 33℃. Actual range may vary.
Motor & power
Power to Go Further
The 750W high-torque motor delivers smooth, reliable power for daily commutes,Designed for urban streets and delivery routes, it ensures fast, confident acceleration and keeps your ride efficient and responsive in any situation.
750W/1000W
Peak Motor
5-Level
Pedal Assist
60Nm
Max Torque
Battery & endurance
Long-Range Battery. Built for the Long Ride.
Powered by a 48V lithium battery with 32Ah capacity, it delivers up to 90 miles in pedal assist mode or up to 60 miles in pure electric mode. The removable design and 3A fast charging in 10–11 hours keep you ready for every ride.
100 MIles
Max Range
1536Wh
Removable Battery
18LBS
Battery Weight
Display & Control

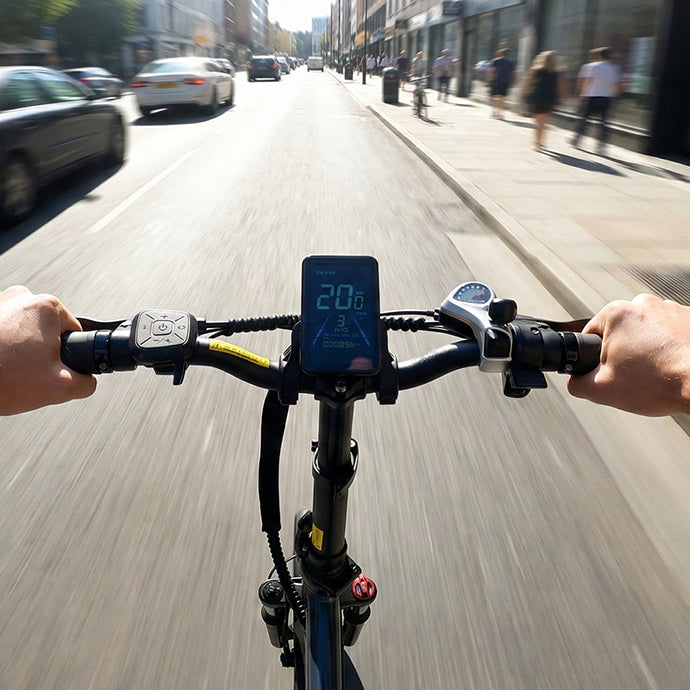

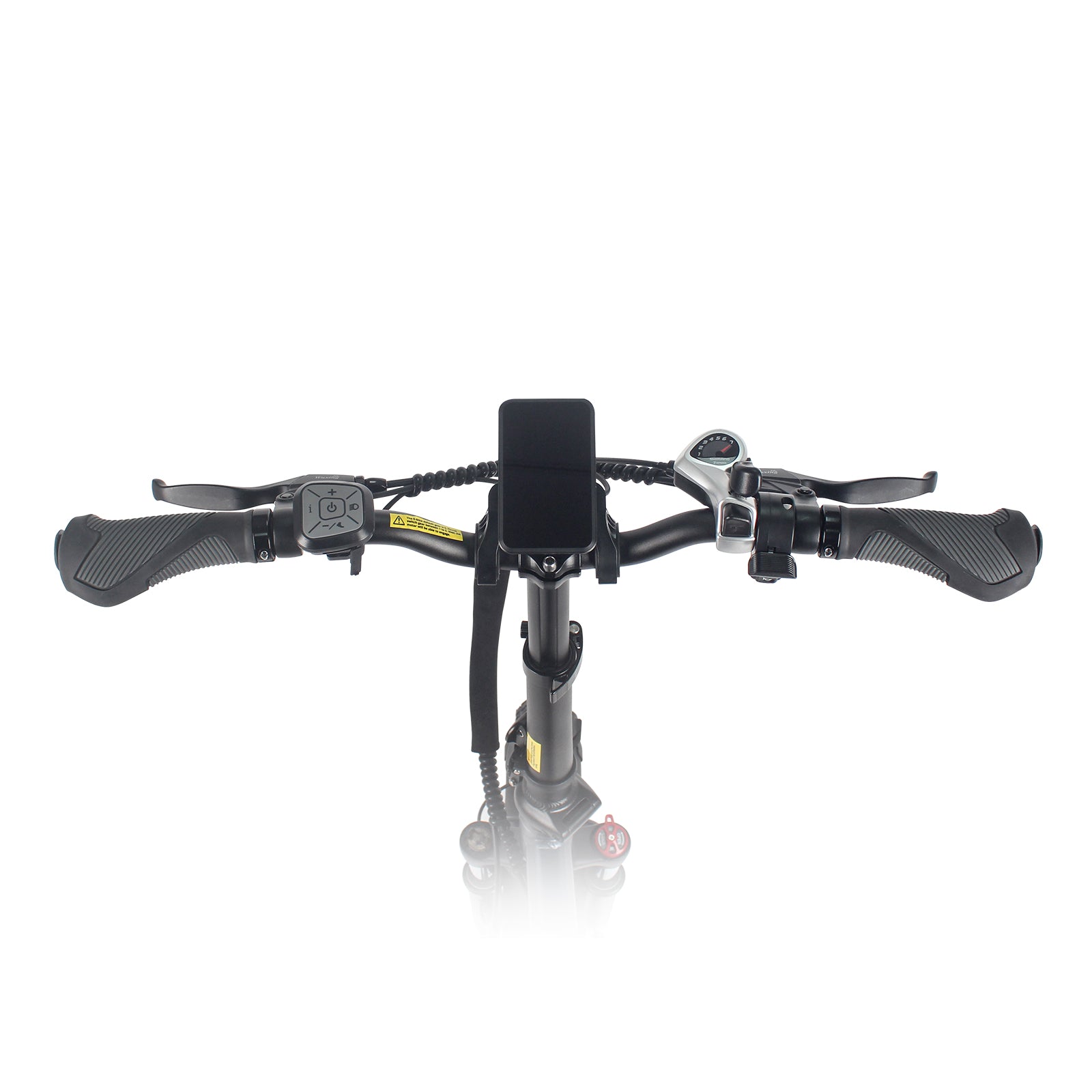

Smart LCD Display. Total Control at a Glance.
The full-color LCD display shows power assist level, battery status, speed, and mileage. Stay informed and control your ride effortlessly. Cruise control can be activated or turned off for added comfort.
Disc Brake System
Hydraulic Disc Brakes. Precise, Confident.
Hydraulic disc brakes provide strong, precise stopping power with minimal hand effort. The sealed design keeps performance consistent in rain or dust. Less maintenance means smooth, confident control on every ride.
Comfort · Stability · Efficiency
Front Suspension Fork. Built for City Streets.
With 80mm travel, preload adjustment, and lockout, the fork smooths city bumps and curbs, reducing fatigue. Keeps rides comfortable and efficient for long commutes or delivery shifts.
Headlight · Taillight · Turn Signals
Smart Lighting System. See Clearly, Be Seen Everywhere.
High-luminance LED headlight, red warning tail light, ensure you see the road clearly and are highly visible to others, keeping night rides safe and confident.
Hear From the Community
Specification & Geometry
Specification
Frameset
Frame
Aluminum Alloy
Full Suspension
Spring Fork, 65 mm travel with preload adjustment and lock-out
E-system & Drivetrain
Battery
Removable 48V, 32Ah (1536Wh)
Charger
48V 3A Fast Charger
Display Type
LCD Color Display
USB Port
USB Type-C phone charge
Throttle Assist
Half-twist
Pedal Assist
5 PAS Levels
Front Light
Adjustable angle
Rear Light
Braking Indicator and Turn signal
Water Resistant
IPX 65
Wheels
Rims
Aluminum alloy
Rear Hub
750W (sustained), 1000W (peak)
Tire
Puncture protection, 20"x3.0"-max tire size
Brakes
Front and Rear Hydraulic Disc Brakes, Front and Rear Mechanical Disc Brakes
Brakes Rotors
160mm
Speed & Range
Max Speed
20 MPH
Max Speed Adjustable Range
12~28 MPH
Throttle Range
65 Miles
Pedal Assist Range
90 Miles
Accessories
Light
Headlight and Taillight
Rear Rack
High carbon steel
Kickstand
Alloy
Weight & Dimensions
Bike Weight
33 kg / 73.2 lbs
Max Bike Load
150 kg / 330 lbs
Rear Rack Load
40 kg / 90 lbs
Folded Dimensions
42.5*18.1*28.3 inch
Geometry
