Peak 2300w Dual Motor Step-thru Ebike

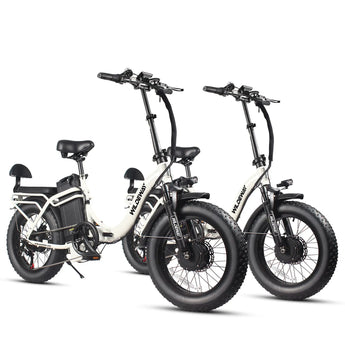

SummitX 32ah - Combo
Pay as low as ... with
Choose your plan
Size: 5'4"-6'4"
📏Size & Fit
Size & Fit
Regular
Select your height.
Large
Select your height.
Pre-Order extra discount of $100: PRE100US.
Max Range100 Miles/160 Miles
Top Speed28 MPH
Battery1536 Wh/2880 Wh
Motor2300W Peak Dual Motor
Fat Tires20x4.0"
Payload350LBS
Learn about More Features
| General Info | |
|---|---|
| Model Name | Wildeway SummitX |
| Frame | Step-Thru High-Carbon Steel |
| Full Suspension | Spring Fork, 65 mm travel with preload adjustment and lock-out |
| Size Guide | |
|---|---|
| User Height Range | 5'2'' ~ 6'4'' |
| Seat Height Range | 35"-43.3" |
| Speed & Range | |
|---|---|
| Max Speed (Default) | 20 MPH |
| Max Speed Adjustable Range | 12~28 MPH |
| Throttle Range | 65 Miles |
| Pedal Assist Range | 100 Miles |
| E-system | |
|---|---|
| Front Hub | 48V, 500W, 1000W (peak), 50Nm |
| Rear Hub | 48V, 750W, 1300W (peak), 68Nm |
| Battery | 48V, 32Ah (1536Wh)/60Ah (2880Wh), IPX6, Certificated by UL 2271 |
| Charger | 48V 4A Fast Charger |
| Display Type | LCD Color Display |
| Sensors | Cadence Sensor |
| USB Port | USB Type-C phone charge |
| Throttle Assist | Half-twist |
| Pedal Assist | 5 PAS Levels |
| Front Light | Adjustable angle |
| Rear Light | Braking Indicator and Turn signal |
| Water Resistant | IPX 65 |
| Wheels | |
|---|---|
| Rims | Aluminum alloy |
| Tire | 20"x4.0" puncture-resistant tires |
| Brake | Hydraulic Disc Brakes |
| Rotors | 180mm front / 180mm rear |
| Brake Levers | Aluminum Alloy, with power cutoff |
| Weight & Dimensions | |
|---|---|
| Bike Weight | 42 kg / 93 lbs |
| Max Bike Load | 160 kg / 350 lbs |
| Rear Rack Load | 50 kg / 110 lbs |
| Folded Dimensions | 38.1*22*35.4 inch |
| Drivetrain | |
|---|---|
| Chainrings | 52T narrow-wide chainring |
| Crankset | Aluminum Alloy, 165mm |
| Cassette | 7-speed, 14-28T |
| Chain | KMC 7-speed |
| Rear Derailleur | SHIMANO, 7-speed |
| Shift Lever | SHIMANO, 7-speed |
Impossible de charger la disponibilité du service de retrait
TÜV Safety Certified
Certified in accordance with UL2848 / UL2271.
What's Included
Wildeway SummitX Ebike
Manual & Quickstart Guide
Toolkit to help you assemble the bike
Battery, Charger, Front & Rear Light, Display, Front Fender, Cable Binder, Bike Kickstand and Left & Right Pedals
Shipping & Warranty
Free Shipping to US except Alaska, Hawaii, Puerto Rico & other US territories.
15-Day Trial - Return it to us if you’re not 100% satisfied with your purchase. Restocking fee applies.
1-Year Warranty - our industry-leading 1-year warranty covers all electrical components as well. See details here.
Free Shipping
15-day Trial
2-Year Warranty
Calculate Your Range
See how far you can go based on pedal assist levels.
Estimated Range
160
Miles
Avg. Speed
7.2
MPH
Select Pedal Assist Level (PAS):
*Estimates based on rider weight 80kg, flat road at 33℃. Actual range may vary.
The Do-Anything Beast
Motor & Performance
Conquer Any Terrain
SummitX's front 1000W motor and rear 1300w motor hyperdrive system revolutionizes e-mobility:
Front/Rear Independent Power Control™ via handlebar toggle
28 MPH (45 km/h) throttle-only acceleration
118N·m torque dual motor conquers 30% inclines
Synergy Drive Technology balances load distribution,increasing efficiency 22%* while reducing motor wear.
2600W
Peak Motor
5-Level
Pedal Assist
118Nm
Max Torque
Range · Power · Certified
Safety Certified Battery
SummitX's 48V 2880Wh removable battery delivers 160-miles pedal-assist range with 5A fast charging, featuring a 14-protection BMS and extreme climate resilience (-20°C to 50°C) for all-terrain adventures.
SummitX's 48V 1536Wh removable battery delivers 100-Miles pedal-assist range with 4A fast charging, featuring a 14-protection BMS and extreme climate resilience (-20°C to 50°C) for all-terrain adventures.
SummitX's 48V 1536Wh removable battery delivers 100-Miles pedal-assist range with 4A fast charging, featuring a 14-protection BMS and extreme climate resilience (-20°C to 50°C) for all-terrain adventures.
2880Wh
Peak Motor
160MIles
Max Range
UL 2271
Certified
Strength · Versatility · Utility
Multifunctional Rear Rack
Engineered for heavy-duty hauling, SummitX's rear rack supports 110 lbs payloads with a reinforced alloy frame. Its modular grid system accommodates baskets, panniers, or custom gear in seconds.
Portability · Convenience · Freedom
Compact Foldable Design
SummitX transforms into compact form in 15 seconds with four intuitive folds, delivering effortless portability for urban commutes or apartment living.
Brake System
High-Performance Brakes
Experience superior stopping power and unmatched control with front and rear hydraulic brakes. Paired with oversized 180mm brake rotors, you'll enjoy reliable, responsive braking in any condition,
ensuring a safer ride every time.
Specification & Geometry
Specification
Frameset
Frame
High Carbon Steel
Full Suspension
Spring Fork, 65 mm travel with preload adjustment and lock-out
E-system & Drivetrain
Battery
Removable 48V, 32Ah, Certificated by UL 2271
Charger
48V 4A Fast Charger
Display Type
LCD Color Display
USB Port
USB Type-C phone charge
Throttle Assist
Half-twist
Pedal Assist
5 PAS Levels
Front Light
Adjustable angle
Rear Light
Braking Indicator and Turn signal
Water Resistant
IPX 65
Wheels
Rims
Aluminum alloy
Front Hub
500W (sustained), 1000W (peak)
Rear Hub
750W (sustained), 1300W (peak)
Tire
Puncture protection, 20"x4.0"-max tire size
Brakes
Front and Rear Hydraulic Disc Brakes
Brakes Rotors
180mm
Speed & Range
Max Speed
20 MPH
Max Speed Adjustable Range
12~28 MPH
Throttle Range
65 Miles
Pedal Assist Range
100 Miles
Accessories
Light
Headlight and Taillight
Rear Rack
High carbon steel
Kickstand
Alloy
Weight & Dimensions
Bike Weight
42 kg / 93 lbs
Max Bike Load
160 kg / 350 lbs
Rear Rack Load
50 kg / 110 lbs
Folded Dimensions
38.1*22*35.4 inch
Geometry
