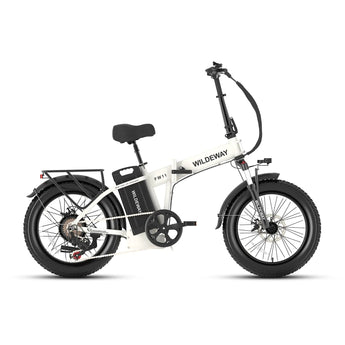

Wildeway FW11 3.0 Step-over E-Bike
48V 1536Wh Long - Range Battery Ebike
Size: 5'2"-6'4"
📏Size & Fit
Size & Fit
Regular
Select your height.
Large
Select your height.
Max Range100 Miles
Top Speed28 MPH
Battery1536 Wh
Motor1000W Peak Motor
Fat Tires20x3.0"
Payload350LBS
Learn about More Features
| General Info | |
|---|---|
| Model Name | Wildeway FW11 3.0 |
| Frame | Aluminum Alloy |
| Front Suspension | Spring Fork, 65 mm travel with preload adjustment and lock-out |
| Size Guide | |
|---|---|
| User Height Range | 5'2'' ~ 6'4'' |
| Seat Height Range | 33.4"-37.4" |
| Speed & Range | |
|---|---|
| Max Speed (Default) | 20 MPH |
| Max Speed Adjustable Range | 12~28 MPH |
| Throttle Range | 65 Miles |
| Pedal Assist Range | 100 Miles |
| E-system | |
|---|---|
| Rear Hub | 48V, 750W, 1000W (peak), 68Nm |
| Battery | 48V, 32Ah (1536Wh), IPX6, Certificated by UL 2271 |
| Charger | 48V 3A Fast Charger |
| Display Type | LCD Color Display |
| Sensors | Cadence Sensor |
| USB Port | USB Type-C phone charge |
| Throttle Assist | Half-twist |
| Pedal Assist | 5 PAS Levels |
| Front Light | Adjustable angle |
| Rear Light | Braking Indicator and Turn signal |
| Water Resistant | IPX 65 |
| Wheels | |
|---|---|
| Rims | Aluminum alloy |
| Tire | 20"x3.0" puncture-resistant tires |
| Brake | Mechanical/Hydraulic Disc Brakes |
| Rotors | 160mm front / 160mm rear |
| Brake Levers | Aluminum Alloy, with power cutoff |
| Weight & Dimensions | |
|---|---|
| Bike Weight | 33 kg / 73.2 lbs |
| Max Bike Load | 150 kg / 350 lbs |
| Rear Rack Load | 40 kg / 90 lbs |
| Folded Dimensions | 37*19.3*29.5 inch |
| Drivetrain | |
|---|---|
| Chainrings | 52T narrow-wide chainring |
| Crankset | Aluminum Alloy, 160mm |
| Cassette | 7-speed, 14-28T |
| Chain | KMC 7-speed |
| Rear Derailleur | SHIMANO, 7-speed |
| Shift Lever | SHIMANO, 7-speed |
Safety Certified in Accordance with UL 2849.
15-Day Free Trial
1-Year Warranty
Features & Details
● 48V 32Ah (1536Wh) Long-Range Battery
● 1000W Peak Motor
● Top speed 28 mph
● 5-level pedal assist, Walk mode, USB charging
● Adjustable Stem
● Front Suspension
● Shimano 7-speed
● Mechanical Disc Brakes / Hydraulic Disc Brakes
Shipping & Warranty
Free Shipping to Canada and US except Alaska, Hawaii, Puerto Rico & other US territories.
15-Day Trial - Return it to us if you’re not 100% satisfied with your purchase. Restocking fee and handle fee applies. See details here.
1-Year Warranty - Wildeway provides 1-year free diagnostic and maintenance services for customers. See details here.
What's in the Box
- E-Bike Body
- User's Manual
- Toolkit to help you assemble the bike
- Battery, Battery Key, Charger, Front Light, Left & Right Pedal, Front wheel quick-install accessories and Bike Saddle.
Product information
We're glad you came to our site and hope you can find the ride gear you're looking for. We understand that some aspects might lack clarity or you cannot find what you want, so please take some times to fill out the form to let us know how we can help you. Please leave us an email.
Contact Information
WILDEWAY LTD
Address：445 North Broadway
Denver, CO 80203
Email: support@wildewayebike.com
Call Us: +1 (213)329-2156
Time: Sun-Fri 5 pm-4 am(PST)
WhatsApp: +1 909 893 4722
Warehouse: Rancho Cucamonga, CA 91730
Calculate Your Range
See how far you can go based on pedal assist levels.
Estimated Range
100
Miles
Avg. Speed
7.2
MPH
Select Pedal Assist Level (PAS):
*Estimates based on rider weight 80kg, flat road at 33℃. Actual range may vary.
Motor & Power
Power You Can Feel
Powerful 750W motor, helping you effortlessly tackle city hills and long-distance rides.
750W/1000W
Peak Motor
5-Level
Pedal Assist
60N.m
Max Torque
Battery & Range
32Ah Long-Range Battery
Powered by a 48V high-capacity lithium battery, choose between 32Ah or an optional 60Ah upgrade to match your riding needs. Enjoy up to 90 miles of range in pedal assist mode or up to 60 miles in pure electric mode, with a removable, integrated design for easy off-bike charging. 3A fast charging fully recharges the battery in 10–11 hours, delivering reliable long-range performance without sacrificing everyday convenience.
100 MIles
Max Range
1536Wh
Removable Battery
18 LBS
Battery Weight
Display & Control
Smart LCD Display. Total Control at a Glance.
The full-color LCD display puts all essential information right in front of you, including power assist level, battery status, riding speed, and trip mileage, so you can stay informed and in control at all times.cruise control can be easily activated or completely turned off.
Disc Brake System
Hydraulic Disc Brakes. Powerful, Precise, Confident.
Featuring hydraulic disc brakes, this system delivers stronger, more precise braking performance with minimal hand effort.
Adjustable front fork
Front Suspension Fork
With 80mm travel, preload adjustment, and lockout, the fork smooths out city bumps, reduces fatigue, and keeps your ride comfortable and efficient.
lights and safety
Smart Lighting System
Equipped with a high-luminance LED headlight, red warning tail light, and turn signals, this lighting system ensures you see the road clearly and are highly visible to others, making night rides, commutes, and delivery shifts safer and more confident.
comfortable seat
Adjustable Seat. Comfort for Every Ride.
The adjustable seat with PU memory foam provides all-day comfort, reducing fatigue during long commutes or delivery rides while letting you fine-tune your riding position for the perfect fit.
Specification & Geometry
Specification
Frameset
Frame
Aluminum Alloy
Full Suspension
Spring Fork, 65 mm travel with preload adjustment and lock-out
E-system & Drivetrain
Battery
Removable 48V, 32Ah (1536Wh)
Charger
48V 3A Fast Charger
Display Type
LCD Color Display
USB Port
USB Type-C phone charge
Throttle Assist
Half-twist
Pedal Assist
5 PAS Levels
Front Light
Adjustable angle
Rear Light
Braking Indicator and Turn signal
Water Resistant
IPX 65
Wheels
Rims
Aluminum alloy
Rear Hub
750W (sustained), 1000W (peak)
Tire
Puncture protection, 20"x3.0"-max tire size
Brakes
Front and Rear Hydraulic Disc Brakes, Front and Rear Mechanical Disc Brakes
Brakes Rotors
160mm
Speed & Range
Max Speed
20 MPH
Max Speed Adjustable Range
12~28 MPH
Throttle Range
65 Miles
Pedal Assist Range
90 Miles
Accessories
Light
Headlight and Taillight
Rear Rack
High carbon steel
Kickstand
Alloy
Weight & Dimensions
Bike Weight
33 kg / 73.2 lbs
Max Bike Load
150 kg / 330 lbs
Rear Rack Load
40 kg / 90 lbs
Folded Dimensions
37*19.3*29.5 inch
